Features

• Able to handle all materials, no matter it is dry, wet or sticky.For mixing in explosive dust environments, the speed at the top is below 1m/s.
• Excellent cleanability - The interior of equipment is an all-welded structure and has rounded corners, leaving no residue during cleaning.
• Large side inspection hole - There are no dead corners thanks to Amixon's ingenious cutting technology.Easy to inspect and clean the inside.
• Prevention of foreign objects - Because the cantilever actuator has a structure in which the shaft seal does not come into contact with the raw materials.Since the gearbox is mounted outside the machine, lubricants such as oil will not mix with the raw materials.
• Automatic cleaning - Optional cleaning nozzles enable automatic cleaning of the inside of the mixing tank.
• Reduced drying time - The fact that the thermal medium can pass through the shaft, stirring blades and baffles, so a large heat transfer area can be obtained.Under ideal stirring, the heat-transferring part has more contact with the powder, which then can be quickly dried and cooled.Vacuum drying under reduced pressure is also possible.
• Easy mixed drying - due to low-speed rotation (circumferential speed of 2m/sec), soft drying that is not easy to damage the particles is possible.The optional cutting rotor can also be used to break up clumps.
• Thermal media hot water, cold water, steam and oil are all possible.
• Space saving - It can save space due to lower height than that of conical dryers.Little material residue thanks to the flat bottom.

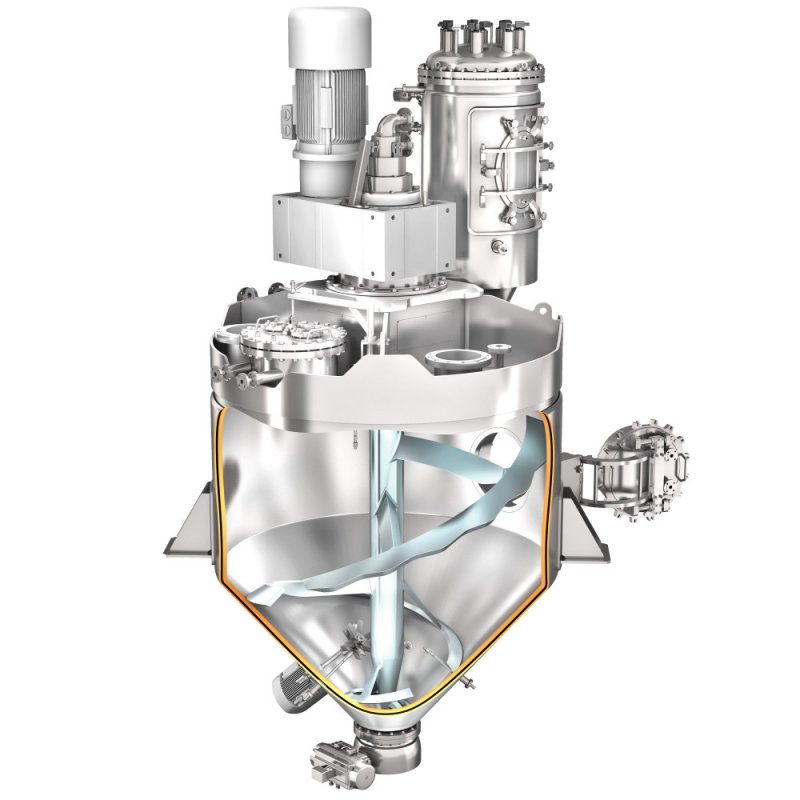

* Conical vacuum dryers (AMT type) can also be manufactured.

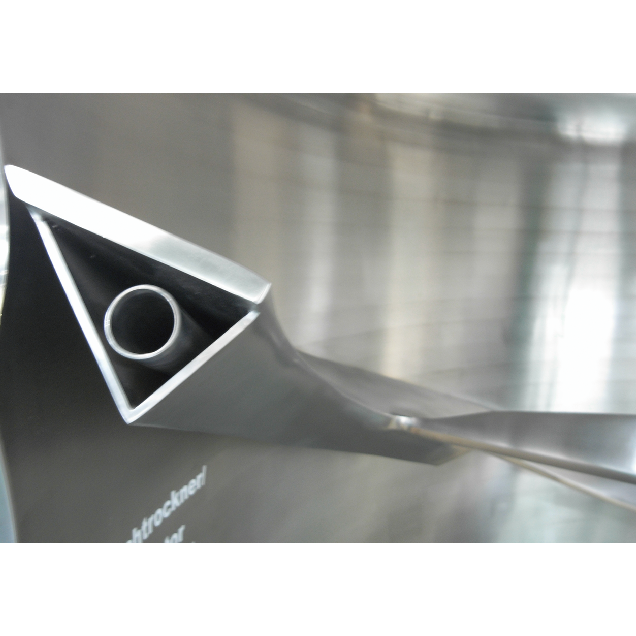

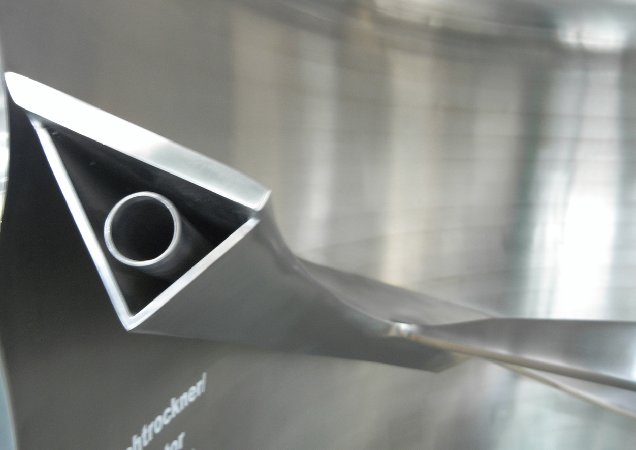

Cross section of stirring paddle

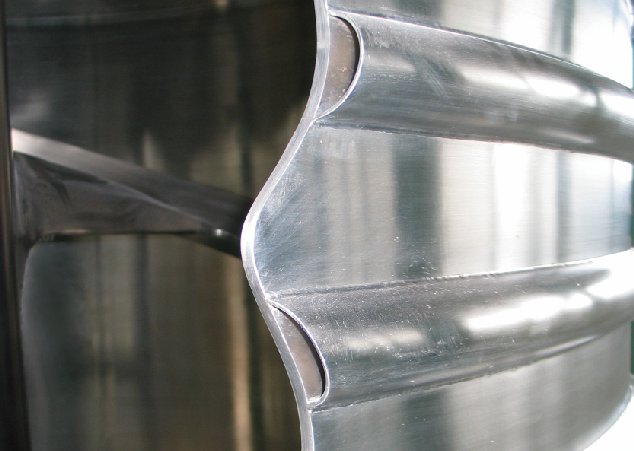

Large jacket structure

Purpose

• A Vacuum dryer with excellent drying performance and cleanability
• Suitable for chemicals, foods, pharmaceuticals and other industries
