Discharging

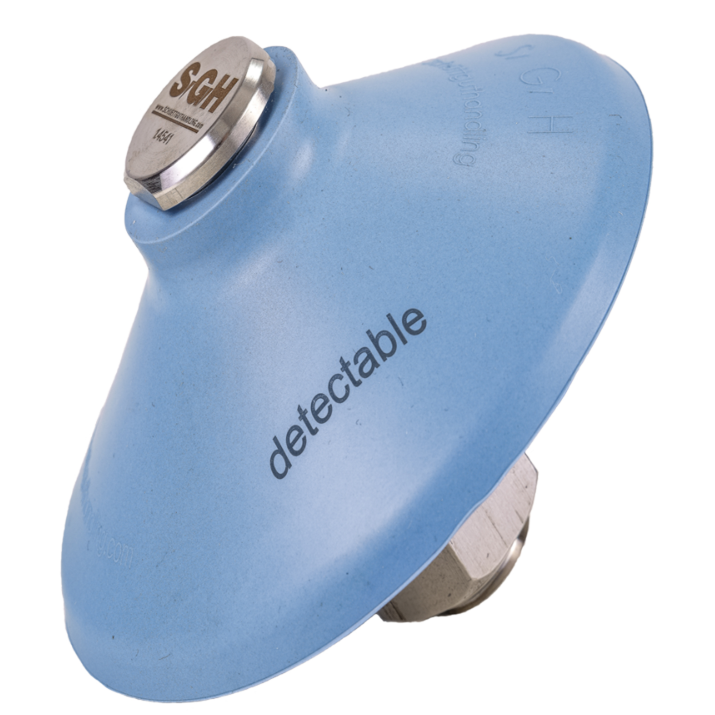

SGH Vibrating Pad

Application Industries
Principle

Features

Purpose

When the air is turned on

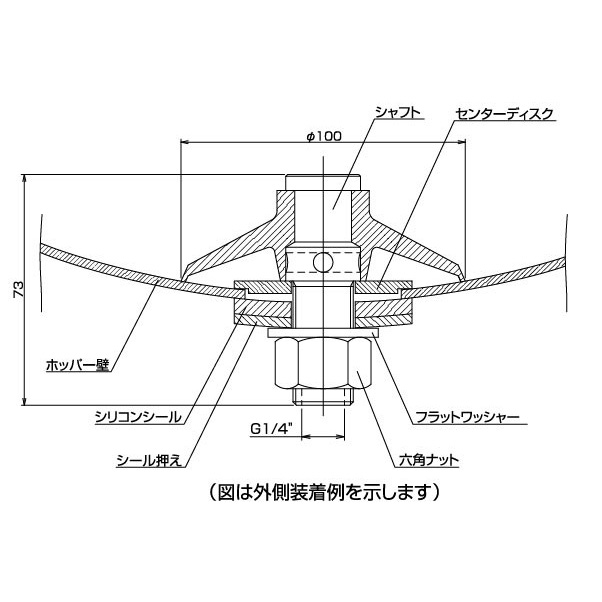

The compressed air enters the container via the mounting bolts/pins of the vibrating pad and comes out from beneath the soft neoprene/silicone membrane. The flow of raw materials is promoted through the combination of compressed air injection and soft membrane vibration.

When the air is turned off


Once the air is turned off, the materials become compact. The soft silicone rubber/neoprene rubber membrane that adheres to the inner wall of the container has a double-lip shape, so no raw material of any kind can enter the compressed air piping.

Model and parameters

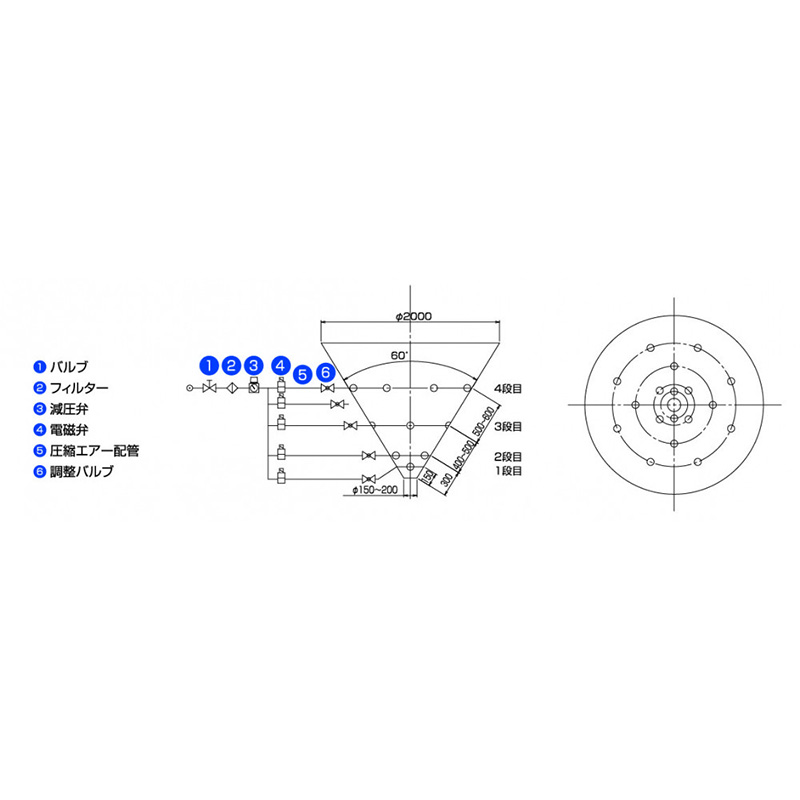

Installation (case)

Contact us

Please feel free to contact us if you want to know about the system configuration of powder-handling equipment or purchase powder-handling equipment.
We sincerely look forward to your contact.
