Principle

• A "specialist” that directly vibrates powder to prevent bridging.

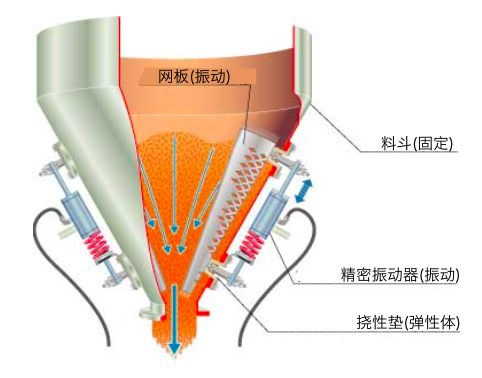

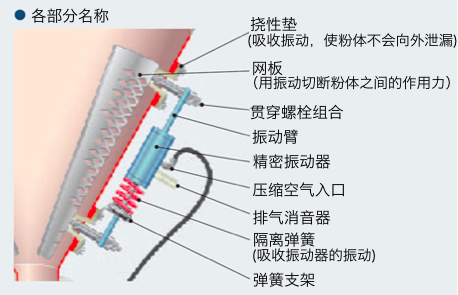

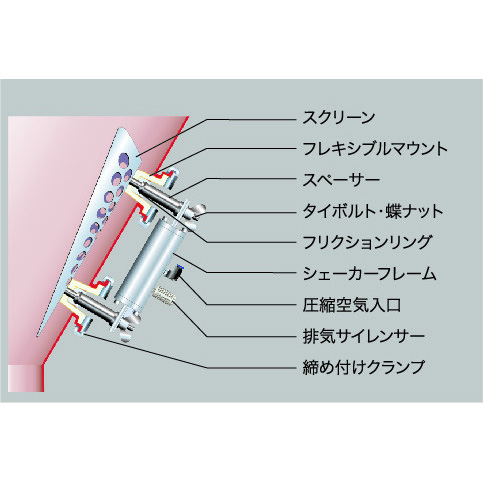

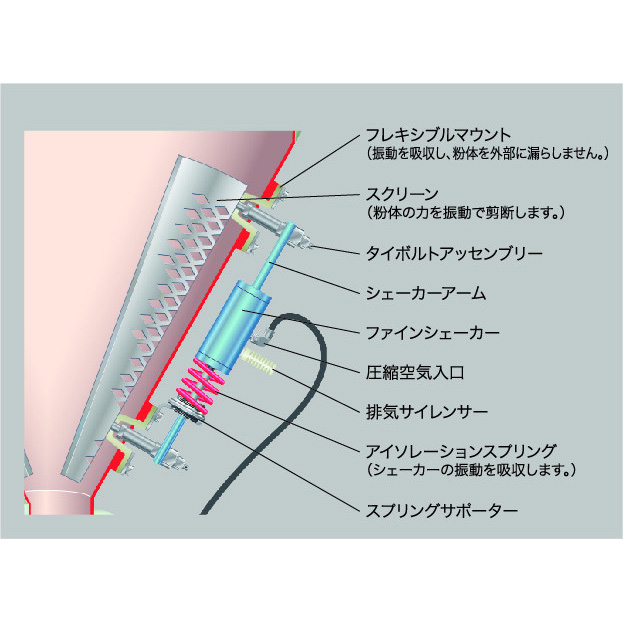

• The vibration generated by the vibrator is transmitted to the screen plate through the vibrating arm and through bolts. The screen plate vibrates inside the container and destroys the bridges. The flexible pad is made of rubber molded product to prevent powder from leaking from the container. In addition, the vibration interval of the screen plate can be adjusted according to the characteristics of different powders by operating the attached control box. Moreover, the screen plate can be installed and disassembled quickly.

Features

• Suitable for powders that cannot be discharged by air hammers, vibrators, etc.
• An epoch-making structure that does not vibrate the container but directly vibrates the powder material inside.
• Can be installed on any hopper.
• The price is affordable, and the installation cost is even more cost-effective.
• No need to worry about the impact of noise (60dB~70dB(A))
• Can also be installed in explosion-proof areas.

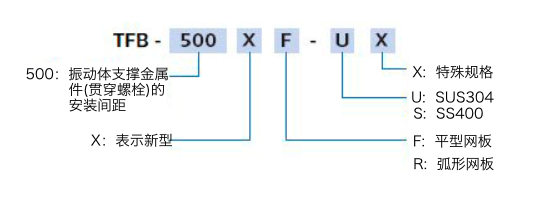

Model and parameters

Flexible pad material: CR, NBR, EPDM
Standard screen plate size: 400UW x 120LW x 690L

Flow chart
